The remote-controlled iMove is a pull/pusher that will allow you to move all types of trolleys and wheeled equipment on any ground without any effort.

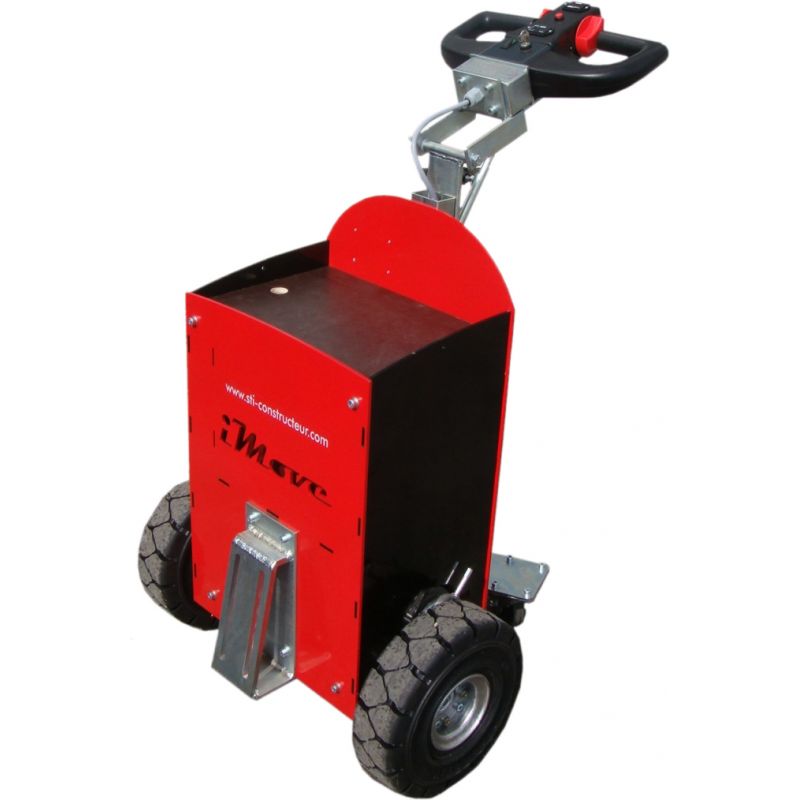

iMove Remote Control
The remote-controlled iMove is a pull/pusher that will allow you to move all types of trolleys and wheeled equipment on any ground without any effort.
The remote-controlled iMove allows, thanks to its remote control, to move forward or backward in a progressive manner at slow or fast speed.
It is equipped with a horn and a flashing light to signal its presence in your environment.
It is a versatile puller/pusher, 2 in 1, which will allow you to use accessories to clear snow, salt your car parks and surroundings, tow all types of trolleys, rolls and two- or four-wheeled waste containers, etc...
The remote-controlled iMove has a drawbar safety. It's up to you to choose the desired function: remote control or manual.
Thanks to its electronics, it can be programmed according to your wishes: acceleration, deceleration and speed.
PHOTOS
VIDEOS
imove-telecommande
Data sheet
- Pulling capacity
- 1500 kg on flat ground
- Length (mm)
- 860
- Hook effort (Kg)
- 145
- Width (mm)
- 665
- Height (mm)
- 1025
- Turning radius (mm)
- 377
- Vehicle weight with batteries (Kg)
- 140
- Type of driving
- Accompanying
- Engine
- 24V / 800 watts - direct current
- Brake
- Electromagnetic with manual disengagement
- Transmission
- Differential in oil bath
- Power Electronics
- CURTIS 24V / 130A dimmer
- Batteries
- 2 Lead Batteries 12V / 70A (C5)
- Battery weight
- 2 x 21 Kg
- Battery dimensions (mm)
- L.277 / W.168 / H.235
- Charger
- On-board with charge status indicator - 3 m long mains socket
- Output (Voltage / Current)
- 24V/10A
- Power
- 240 W
- Input voltage
- 85V to 264V
- Frequency
- 50 / 60 Hz
- Chassis
- Steel
- Surface treatment
- Sandblasting and powder coating
- Drive wheels
- 2
- Rims
- ALPAX Aluminum
- Dimension
- 4.00 x 4
- Type de pneus
- PPS ( Solid Soft Tyre )
- Training wheel
- 1
- Remote control
- 100 g
113 x 60 x 26 mm
150 m
IP67
UHF
approx. 50 hours - Equipment
- 2 remote controls
Anti-crush
Connecting coupling with spindle diameter 20
Discharge indicator
Emergency Stop Punch
Front/rear throttle valve for right- or left-handed
Height and tilt adjustable drawbar
Hello
Horn (buzzer)
Key Contactor
Manual switch / remote control
Remote control holder and charger - Performance
- 0 à 5 Rm/h
2 slow and fast programmable positions
Battery life 8 to 16 hours depending on use - Guarantees
- 1 year on motor, charger, batteries and electrical accessories
1 year on power electronics
5 years on the chassis
