iMove Remote Control Trolley

iMove Remote Control Trolley

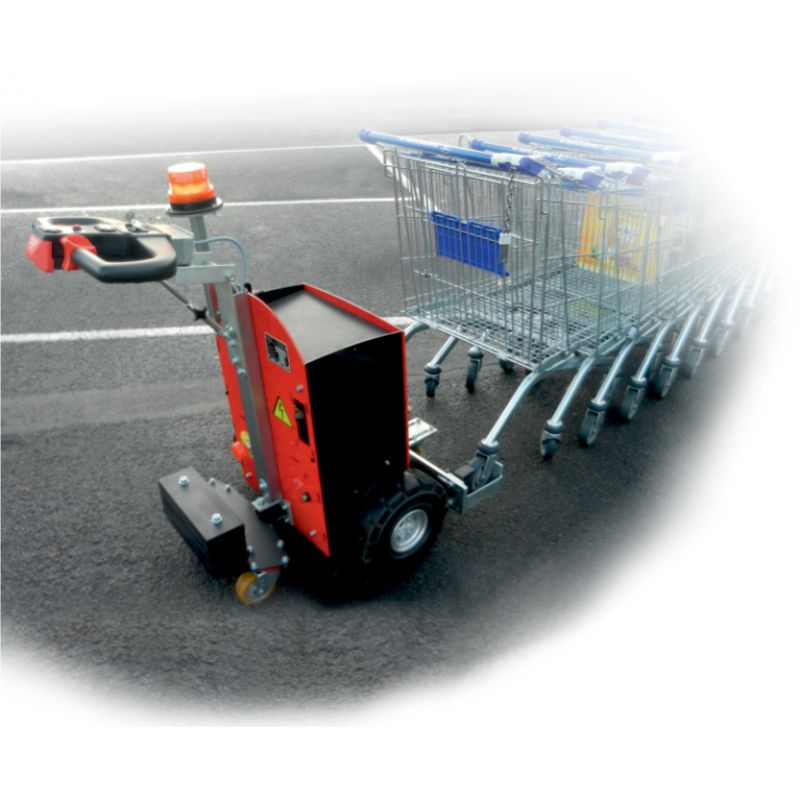

The iMove remote control trolley allows you to move a column of trolleys effortlessly. Thanks to its remote control, you can move forward or backward in a progressive way at slow or fast speed.

The iMove remote control trolley allows you to move a column of trolleys effortlessly.

Thanks to its remote control, you can move forward or backward in a progressive way at slow or fast speed.

It is equipped with a horn and a flashing light to signal its presence in your environment.

It is a versatile puller/pusher, 2 in 1, which will allow you to use accessories to clear snow, salt your car parks and surroundings, tow all types of trolleys, rolls and two- or four-wheeled waste containers, etc...

The iMove has a drawbar safety. It's up to you to choose the desired function: remote control or manual.

Thanks to its electronics, it can be programmed according to your wishes: acceleration, deceleration and speed.

PHOTOS

VIDEOS

imove-telecommande-special-chariots

Data sheet

Pulling capacity
1500 kg on flat ground
Length (mm)
860
Hook effort (Kg)
145
Width (mm)
665
Height (mm)
1025
Turning radius (mm)
380
Vehicle weight with batteries (Kg)
170
Type of driving
Accompanying
Engine
24V / 800 watts - direct current
Brake
Electromagnetic with manual disengagement
Transmission
Differential in oil bath
Power Electronics
CURTIS 24V / 130A dimmer
Batteries
2 Lead Batteries 12V / 70A (C5)
Battery weight
2 x 21 Kg
Battery dimensions (mm)
L.277 / W.168 / H.235
Charger
On-board with charging status indicator - 3 m long mains socket and rain cover
Output (Voltage / Current)
24V/10A
Power
240 W
Input voltage
85V to 264V
Frequency
50 / 60 Hz
Chassis
Steel
Surface treatment
Sandblasting and powder coating
Drive wheels
2
Rims
ALPAX Aluminum
Dimension
4.00 x 4
Type de pneus
PPS ( Solid Soft Tyre )
Training wheel
1
Remote control
100 g
113 x 60 x 26 mm
150 m
IP67
UHF
approx. 50 hours
Equipment
2 remote controls
Adjustable bracket for first trolley
Anti-crush
Discharge indicator
Emergency Stop Punch
Front/rear throttle valve for right- or left-handed
Height and tilt adjustable drawbar
Hello
Horn (buzzer)
Key Contactor
Manual switch / remote control
Remote control holder and charger
Performance
0 à 5 Rm/h
2 slow and fast programmable positions
Battery life 6 to 12 hours depending on use
Guarantees
1 year on motor, charger, batteries and electrical accessories
1 year on power electronics
5 years on the chassis
