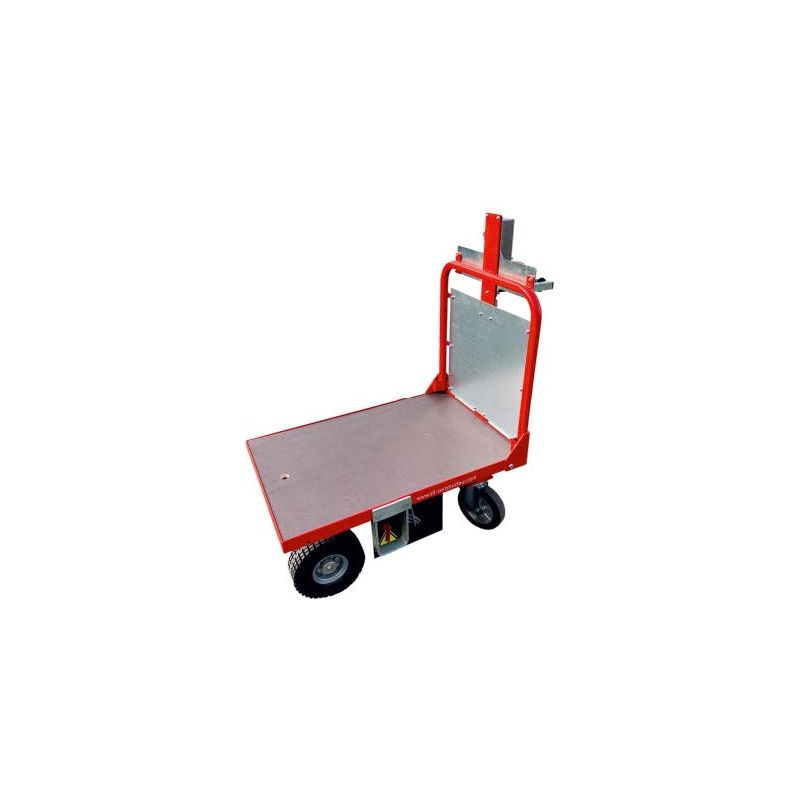

CT1-906 Electric Bed

The CT1-906 is an ideal electric tray for transporting food products, administrative documents, parcels, mechanical parts or any other type of load up to 200 kg.

The CT1-906 is an ideal electric tray for transporting food products, administrative documents, parcels, mechanical parts or any other type of load up to 200kg.

Its small footprint allows you to move around in tight spaces.

All our motorized trays can be equipped according to your needs, side panels, mesh structure, integration of a lift table or any other specific adaptation.

PHOTOS OF CUSTOMER ACHIEVEMENTS

VIDEOS

plateau-electrique-ct1-906

Data sheet

Load capacity
200 kg on flat ground
Length (mm)
1050
Usable Length (mm)
900
Width (mm)
600
Height (mm)
1115
Tray height (mm)
370
Wheelbase (mm)
550
Turning radius (mm)
550
Vehicle weight with batteries (Kg)
105
Type of driving
Accompanying
Engine
24V /400 watts - DC
Brake
5Nm electromagnetic with manual disengagement
Transmission
Differential in oil bath
Power Electronics
CURTIS 24V / 90A dimmer
Batteries
2 x GEL 12V / 36A (C20) batteries
Battery weight
2 x 11 Kg
Battery dimensions (mm)
L.195 / W.130 / H.170
Charger
On-board with charge status indicator - 3 m long mains socket
Output (Voltage / Current)
24V/5A
Power
120 W
Input voltage
195V to 265V
Frequency
50 / 60 Hz
Chassis
Steel
Surface treatment
Sandblasting and powder coating
Drive wheels
2
Rims
Sheet metal
Dimension
3.00 x 4
Type de pneus
PPS ( Solid Soft Tyre )
Front wheels
2 swivel
Front wheel dimensions
Ø 250x50 mm
Type de pneu roues avant
Solid rubber tyres
Equipment
Anti-crush
Circuit breaker with anti-breakage protection
Discharge indicator
Front/rear throttle valve for right- or left-handed
Hello
Horn
Key Contactor
Non-slip wooden floor
Protective fuse
Right and/or left grab handle
Slow or fast speed switch
Performance
Battery life 4 to 10 hours depending on use
Front: 0 to 8 Km/h – Rear: 0 to 5 Km/h (programmable)
Guarantees
1 year on motor, charger, batteries and electrical accessories
2 years on power electronics
5 years on the chassis
