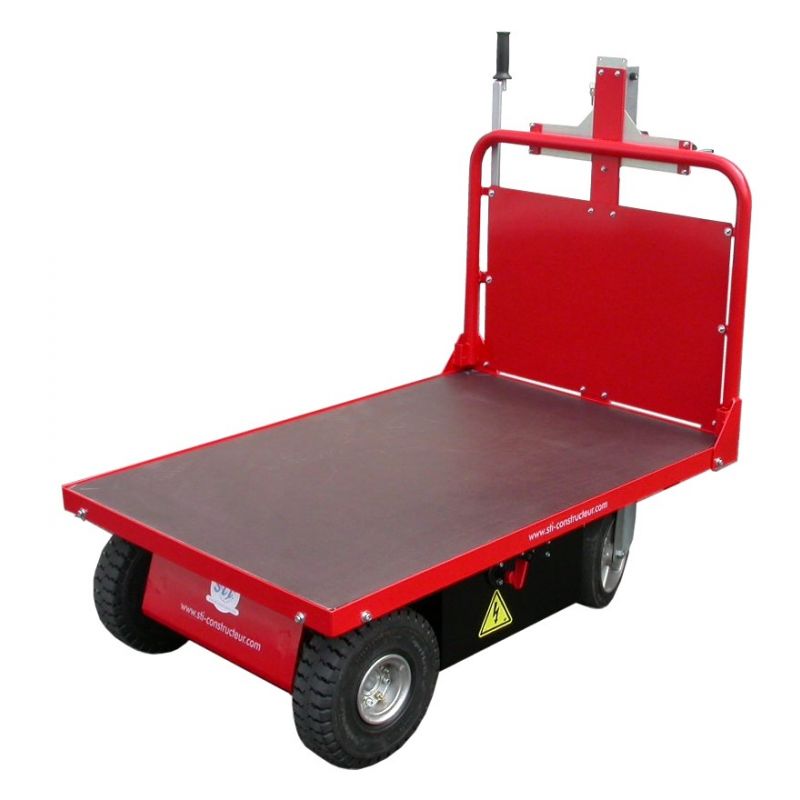

CT1-128 Electric Bed
The CT1-128 is an ideal electric tray for transporting food products, administrative documents, parcels, mechanical parts or any other type of load up to 350kg.
plateau-electrique-ct1-128
Data sheet
- Load capacity
- 350 kg on flat ground
- Length (mm)
- 1350
- Usable Length (mm)
- 1200
- Width (mm)
- 800
- Height (mm)
- 1115
- Tray height (mm)
- 370
- Wheelbase (mm)
- 900
- Turning radius (mm)
- 785
- Vehicle weight with batteries (Kg)
- 172
- Type of driving
- Accompanying
- Engine
- 24V / 800 watts - direct current
- Brake
- 6Nm electromagnetic with manual disengagement
- Transmission
- Differential in oil bath
- Power Electronics
- CURTIS 24V / 130A dimmer
- Batteries
- 2 Lead Batteries 12V / 70A (C5)
- Battery weight
- 2 x 21 Kg
- Battery dimensions (mm)
- L.277 / W.168 / H.235
- Charger
- On-board with charge status indicator - 3 m long mains socket
- Output (Voltage / Current)
- 24V/10A
- Power
- 240 W
- Input voltage
- 85V to 264V
- Frequency
- 50 / 60 Hz
- Chassis
- Steel
- Surface treatment
- Sandblasting and powder coating
- Drive wheels
- 2
- Rims
- Sheet metal
- Front wheels
- 2 swivel
- Front wheel dimensions
- Ø 250 mm
- Type de pneu roues avant
- Solid rubber tyres
- Equipment
- Anti-crush
Circuit breaker with anti-breakage protection
Discharge indicator
Front/rear throttle valve for right- or left-handed
Hello
Horn
Key Contactor
Non-slip wooden floor
Protective fuse
Right and/or left grab handle
Slow or fast speed switch (optional) - Performance
- 0 à 5 Rm/h
Battery life 8 to 16 hours depending on use
Front: 0 to 8 km/h - Rear: 0 to 5 km/h (Programmable) - Guarantees
- 1 year on motor, charger, batteries and electrical accessories
2 years on power electronics
5 years on the chassis - Turning radius
- 900 mm
- Type of tyres
- Inflatable
- Rim size
- 4.00 x 4
