The CT1-158 is an ideal electric tray for transporting food products, administrative documents, parcels, mechanical parts or any other type of load up to 350kg.

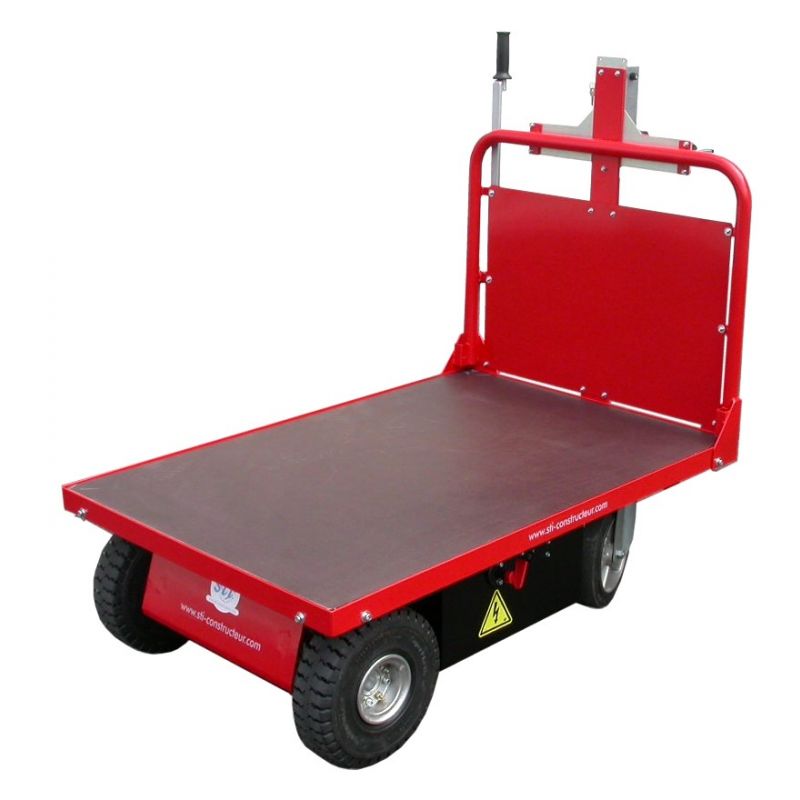

CT1-158 Electric Bed
The CT1-158 is an ideal electric tray for transporting food products, administrative documents, parcels, mechanical parts or any other type of load up to 350kg.
The CT1-158 is an ideal electric tray for transporting food products, administrative documents, parcels, mechanical parts or any other type of load up to 350kg.
Its small footprint allows you to move around in tight spaces.
All our motorized trays can be equipped according to your needs, side panels, mesh structure, integration of a lift table or any other specific adaptation.
PHOTOS OF CUSTOMER ACHIEVEMENTS
VIDEOS
plateau-electrique-ct1-158
Data sheet
- Load capacity
- 350 kg on flat ground
- Length (mm)
- 1650
- Usable Length (mm)
- 1500
- Width (mm)
- 800
- Height (mm)
- 1115
- Tray height (mm)
- 370
- Wheelbase (mm)
- 1200
- Turning radius (mm)
- 1200
- Vehicle weight with batteries (Kg)
- 192
- Type of driving
- Accompanying
- Engine
- 24V / 800 watts - direct current
- Brake
- 6Nm electromagnetic with manual disengagement
- Transmission
- Differential in oil bath
- Power Electronics
- CURTIS 24V / 130A dimmer
- Batteries
- 2 Lead Batteries 12V / 70A (C5)
- Battery weight
- 2 x 21 Kg
- Battery dimensions (mm)
- L.277 / W.168 / H.235
- Charger
- On-board with charge status indicator - 3 m long mains socket
- Output (Voltage / Current)
- 24V/10A
- Power
- 240 W
- Input voltage
- 85V to 264V
- Frequency
- 50 / 60 Hz
- Chassis
- Steel
- Surface treatment
- Sandblasting and powder coating
- Drive wheels
- 2
- Rims
- Sheet metal
- Dimension
- 4.00 x 4
- Type de pneus
- Inflatable
- Front wheels
- 2 swivel
- Front wheel dimensions
- Ø 250 mm
- Type de pneu roues avant
- Solid rubber tyres
- Equipment
- Anti-crush
Circuit breaker with anti-breakage protection
Discharge indicator
Front/rear throttle valve for right- or left-handed
Hello
Horn
Key Contactor
Non-slip wooden floor
Protective fuse
Right and/or left grab handle
Slow or fast speed switch (optional) - Performance
- Battery life 8 to 16 hours depending on use
Front: 0 to 8 Km/h – Rear: 0 to 5 Km/h - Guarantees
- 1 year on motor, charger, batteries and electrical accessories
2 years on power electronics
5 years on the chassis
