The CT1-128-MC is an electric platform with a central motor ideal for transporting food products, administrative documents, parcels, mechanical parts or any other type of load up to 350kg.

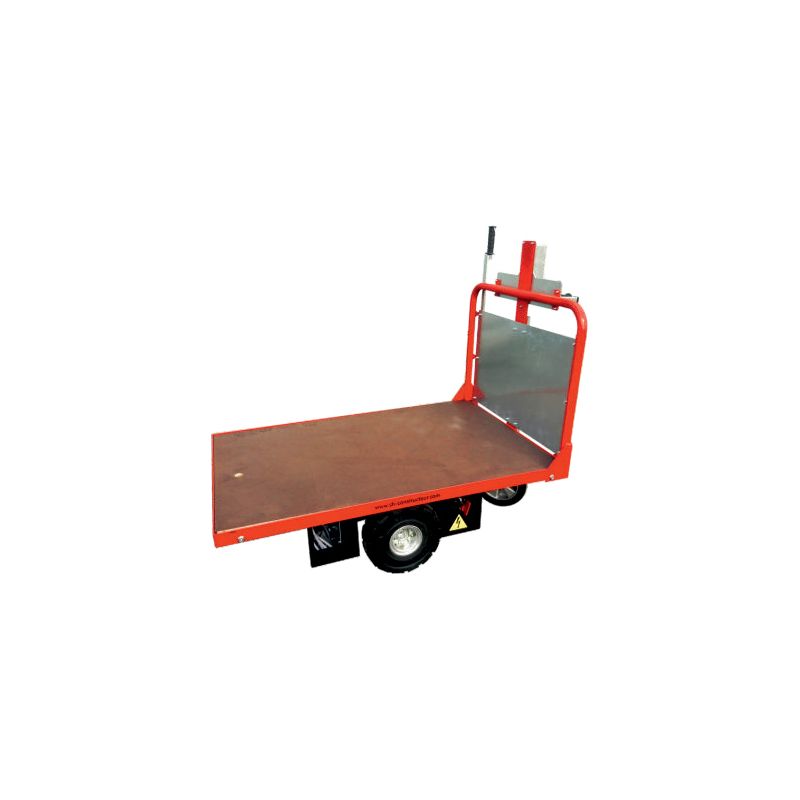

Electric Bed CT1-128-MC
The CT1-128-MC is an electric platform with a central motor ideal for transporting food products, administrative documents, parcels, mechanical parts or any other type of load up to 350kg.
The CT1-128-MC is an electric platform with a central motor ideal for transporting food products, administrative documents, parcels, mechanical parts or any other type of load up to 350 kg.
The central motor allows perfect maneuverability, it can pivot on itself, reducing the turning radius.
Its small footprint allows you to move around in tight spaces.
All our motorized trays can be equipped according to your needs, side panels, mesh structure, integration of a lift table or any other specific adaptation.
PHOTOS OF CUSTOMER ACHIEVEMENTS
plateau-electrique-ct1-128-mc

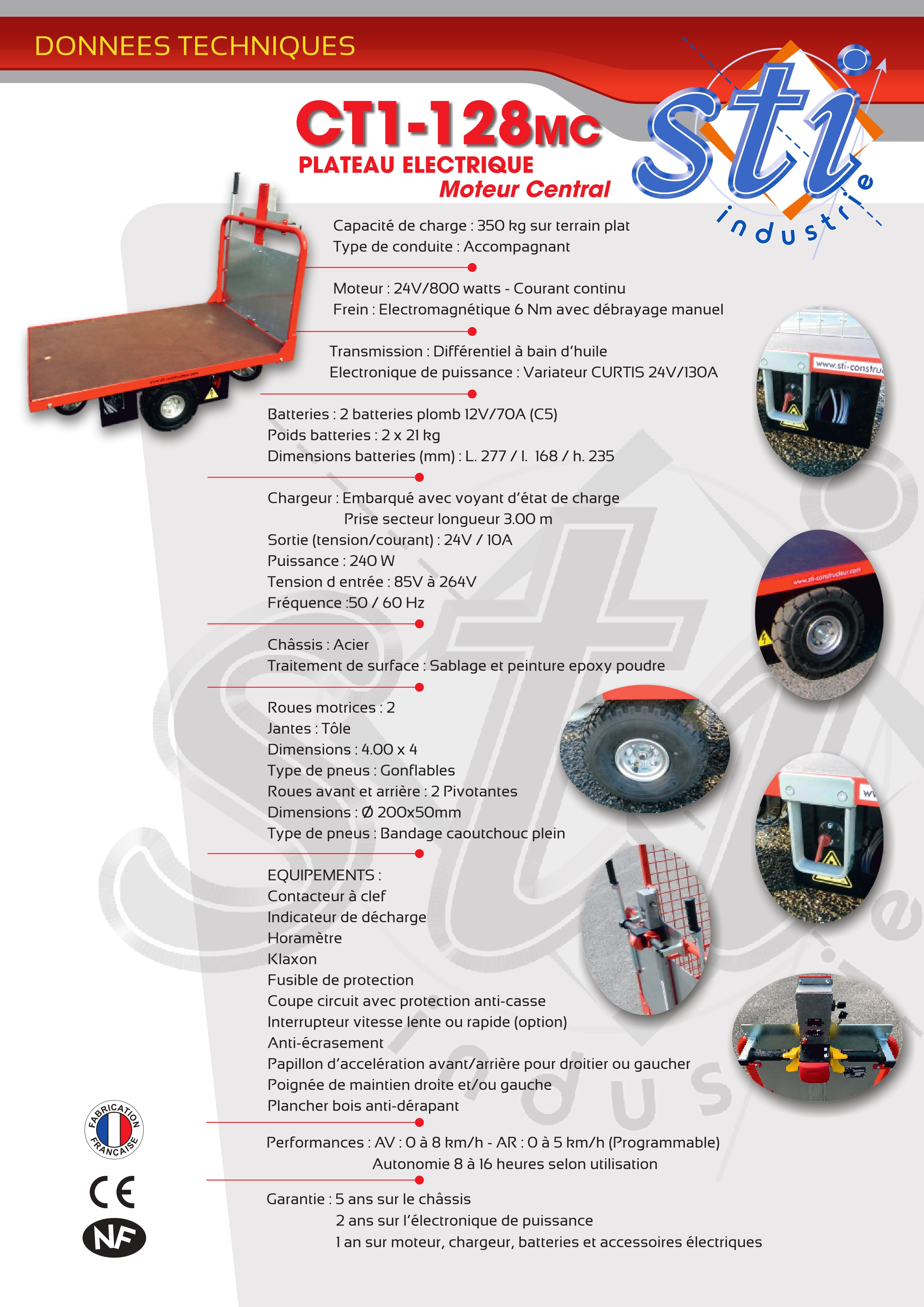

Data sheet
- Load capacity
- 350 kg on flat ground

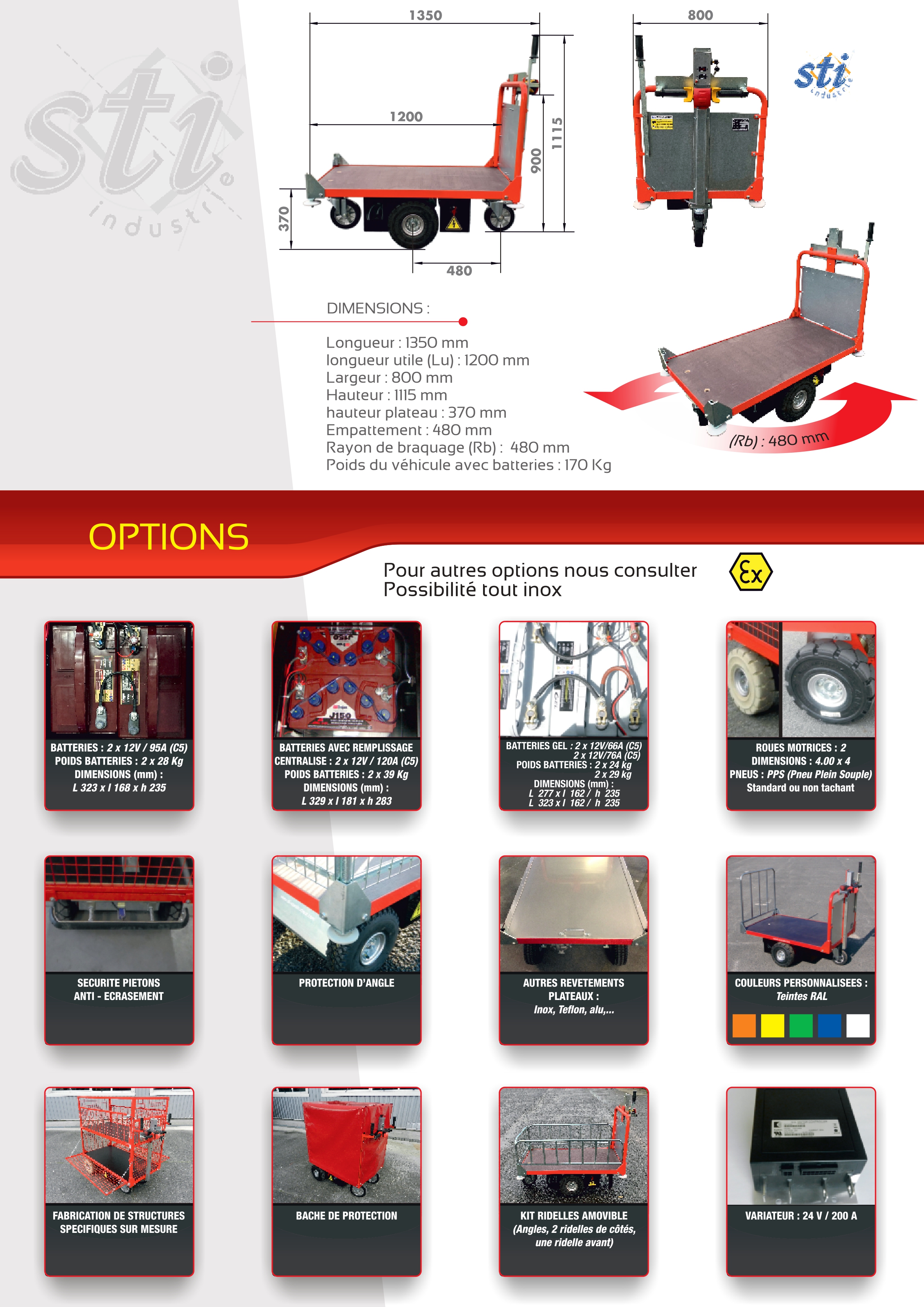

- Length (mm)
- 1350
- Usable Length (mm)
- 1200
- Width (mm)
- 800
- Height (mm)
- 1115
- Tray height (mm)
- 370
- Wheelbase (mm)
- 480
- Turning radius (mm)
- 480
- Vehicle weight with batteries (Kg)
- 172
- Type of driving
- Accompanying
- Engine
- 24V / 800 watts - direct current
- Brake
- 6 Nm electromagnetic with manual disengagement
- Transmission
- Differential in oil bath
- Power Electronics
- CURTIS 24V / 130A dimmer
- Batteries
- 2 lead batteries 12V/70A (C5)
- Battery weight
- 2 x 12 kg
- Battery dimensions (mm)
- L.277 / W.168 / H.235
- Charger
- On-board with charge status indicator - 3 m long mains socket
- Output (Voltage / Current)
- 24V/10A
- Power
- 240 W
- Input voltage
- 85V to 264V
- Frequency
- 50 / 60 Hz
- Chassis
- Steel
- Surface treatment
- Sandblasting and powder coating
- Drive wheels
- 2
- Rims
- Sheet metal
- Front wheel dimensions
- Ø 250x50 mm
- Equipment
- Anti-crush
Circuit breaker with anti-breakage protection
Discharge indicator
Front/rear throttle valve for right- or left-handed
Hello
Horn
Key Contactor
Non-slip wooden floor
Protective fuse
Right and/or left grab handle
Slow or fast speed switch - Performance
- Battery life 8 to 16 hours depending on use
Front: 0 to 8 Km/h – Rear: 0 to 5 Km/h (Programmable) - Guarantees
- 1 year on motor, charger, batteries and electrical accessories
2 years on power electronics
5 years on the chassis - Front and rear wheels
- 2 swivel
- Type of tyres
- Inflatable
Solid rubber tyres - Rim size
- 4.00 x 4
