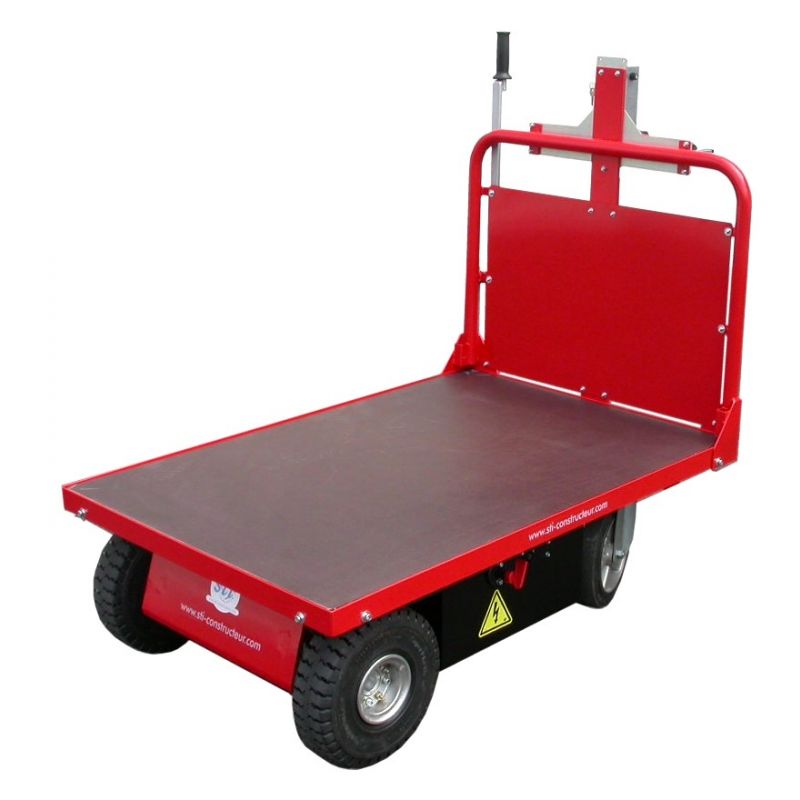

CT2-107 Electric Bed

CT2-107 Electric Bed

The CT2-107 is an electric dual-motorized platform ideal for transporting foodstuffs, administrative documents, parcels, mechanical parts or any other type of load up to 700kg.

Compare

The CT2-107 is a dual-motorized electric tray ideal for transporting foodstuffs, administrative documents, parcels, mechanical parts or any other type of load up to 700 kg.

Its dual engine allows it to overcome significant ramps on degraded ground.

Its small footprint allows you to move around in tight spaces.

All our motorized trays can be equipped according to your needs, side panels, mesh structure, integration of a lift table or any other specific adaptation.

PHOTOS OF CUSTOMER ACHIEVEMENTS

VIDEOS

STI INDUSTRIE
plateau-electrique-ct2-107

Data sheet

Load capacity
700 kg on flat ground
Length (mm)
1200
Usable Length (mm)
1050
Width (mm)
700
Height (mm)
1115
Tray height (mm)
370
Wheelbase (mm)
785
Vehicle weight with batteries (Kg)
157
Type of driving
Accompanying
Engine
2 x 24V / 350 watts - direct current
Brake
6 Nm electromagnetic with manual disengagement
Transmission
Electric differential
Power Electronics
CURTIS 24V / 130A dimmer
Batteries
2 Lead Batteries 12V / 70A (C5)
Battery weight
2 x 21 Kg
Battery dimensions (mm)
L.277 / W.168 / H.235
Charger
On-board with charge status indicator - 3 m long mains socket
Output (Voltage / Current)
24V/10A
Power
240 W
Input voltage
85V to 264V
Frequency
50 / 60 Hz
Chassis
Steel
Surface treatment
Sandblasting and powder coating
Drive wheels
2
Rims
Sheet metal
Front wheels
2 swivel
Front wheel dimensions
Ø 250 mm
Type de pneu roues avant
Solid rubber tyres
Equipment
Anti-crush
Circuit breaker with anti-breakage protection
Discharge indicator
Front/rear throttle valve for right- or left-handed
Hello
Horn
Key Contactor
Non-slip wooden floor
Protective fuse
Right and/or left grab handle
Slow or fast speed switch (optional)
Turning radius
785 mm
Type of tyres
Inflatable
Rim size
4.00 x 4
