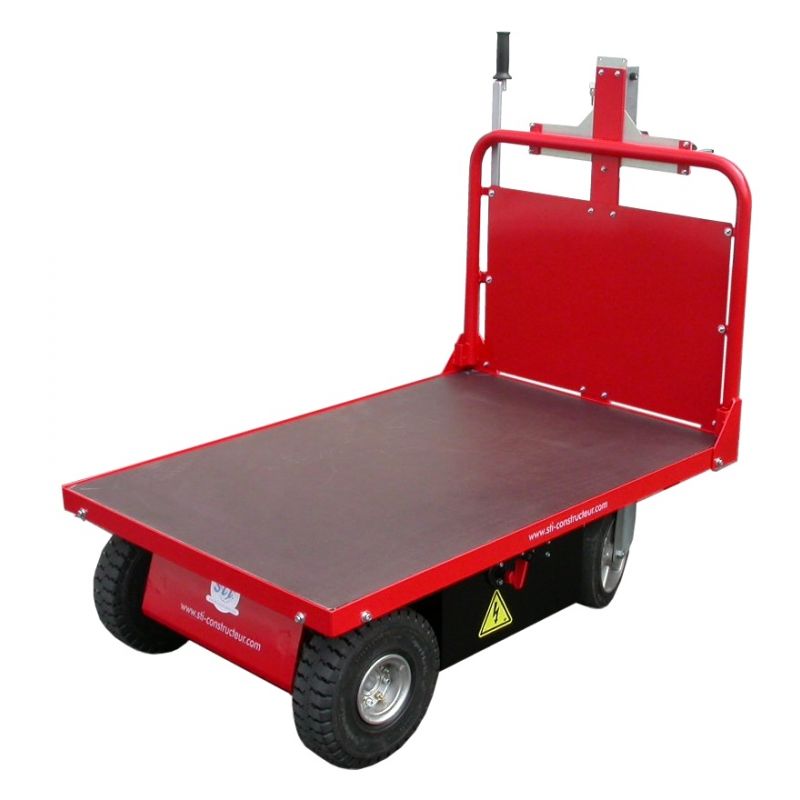

CT2-157 Electric Bed

CT2-157 Electric Bed

The CT2-157 is an electric platform with dual motorization ideal for transporting food products, administrative documents, parcels, mechanical parts or any other type of load up to 700 kg.

The CT2-157 is an electric platform with dual motorization ideal for the transport of food products, administrative documents, parcels, mechanical parts or any other type of 700 kg load.

Its dual engine allows it to overcome significant ramps on degraded ground.

Its small footprint allows you to move around in tight spaces.

All our motorized trays can be equipped according to your needs, side panels, mesh structure, integration of a lift table or any other specific adaptation.

PHOTOS OF CUSTOMER ACHIEVEMENTS

VIDEOS

plateau-electrique-ct2-157

Data sheet

Load capacity
700 kg on flat ground
Length (mm)
1650
Usable Length (mm)
1500
Width (mm)
700
Height (mm)
1115
Tray height (mm)
370
Wheelbase (mm)
1200
Turning radius (mm)
1200
Vehicle weight with batteries (Kg)
190
Type of driving
Accompanying
Engine
2 x 24V / 350 watts - direct current
Brake
6Nm electromagnetic with manual disengagement
Transmission
Electric differential
Power Electronics
CURTIS 24V / 130A dimmer
Batteries
2 Lead Batteries 12V / 70A (C5)
Battery weight
2 x 21 Kg
Battery dimensions (mm)
L.277 / W.168 / H.235
Charger
On-board with charge status indicator - AC socket length 3 m
Output (Voltage / Current)
24V/10A
Power
240 W
Input voltage
85V to 264V
Frequency
50 / 60 Hz
Chassis
Steel
Surface treatment
Sandblasting and powder coating
Drive wheels
2
Rims
Sheet metal
Dimension
4.00 x 4
Type de pneus
Inflatable
Front wheels
2 swivel
Front wheel dimensions
Ø 250 mm
Type de pneu roues avant
Solid rubber tyres
Equipment
Anti-crush
Circuit breaker with anti-breakage protection
Discharge indicator
Front/rear throttle valve for right- or left-handed
Hello
Horn
Key Contactor
Non-slip wooden floor
Protective fuse
Right and/or left grab handle
Slow or fast speed switch (optional)
Performance
1/35 (5km/h) - 1/43 (4km/h) - 1/59 (3km/h) - 1/71 (2km/h)
Ability to adapt reduction ratios
Battery life 8 to 16 hours depending on use
Front: 0 to 8 km/h - Rear: 0 to 5 km/h (Programmable)
Speed reduction and torque increase: 1/29 (6km/h)
With 1/21 gearbox
Guarantees
1 year on motor, charger, batteries and electrical accessories
2 years on power electronics
5 years on the chassis
