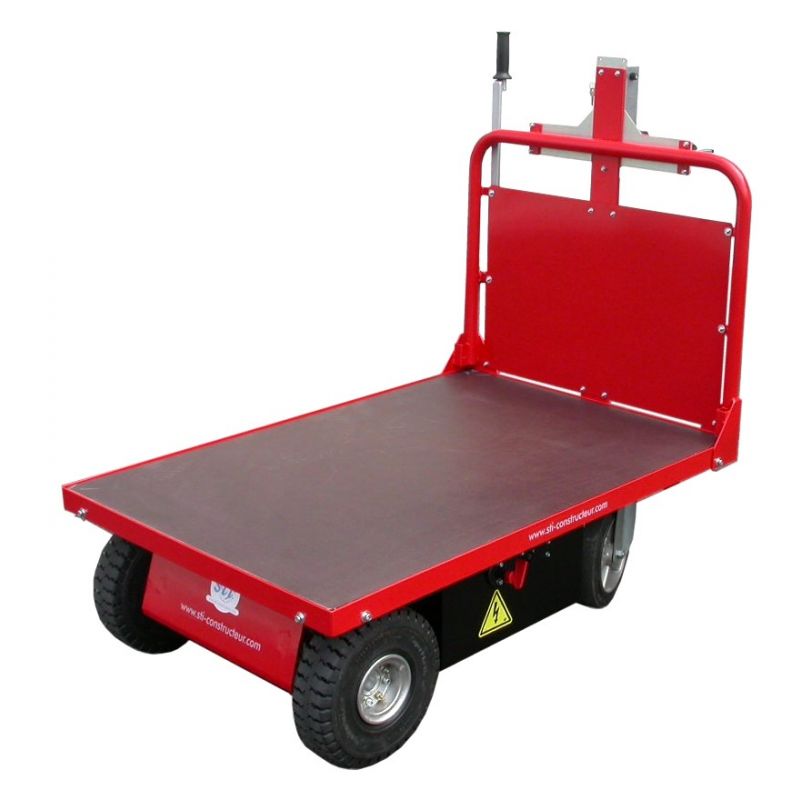

CT2-108 Electric Bed
Le plateau motorisé est idéal pour le transport de produits alimentaires, de documents administratifs, de colis, de pièces mécaniques ou de tout autre type de charge.
The CT2-108 is an electric dual-motorized platform ideal for transporting food products, administrative documents, parcels, mechanical parts or any other type of load up to 700 kg.
Its dual engine allows it to overcome significant ramps on degraded ground.
Its small footprint allows you to move around in tight spaces.
All our motorized trays can be equipped according to your needs, side panels, mesh structure, integration of a lift table or any other specific adaptation.
PHOTOS OF CUSTOMER ACHIEVEMENTS
VIDEOS
plateau-electrique-ct2-108

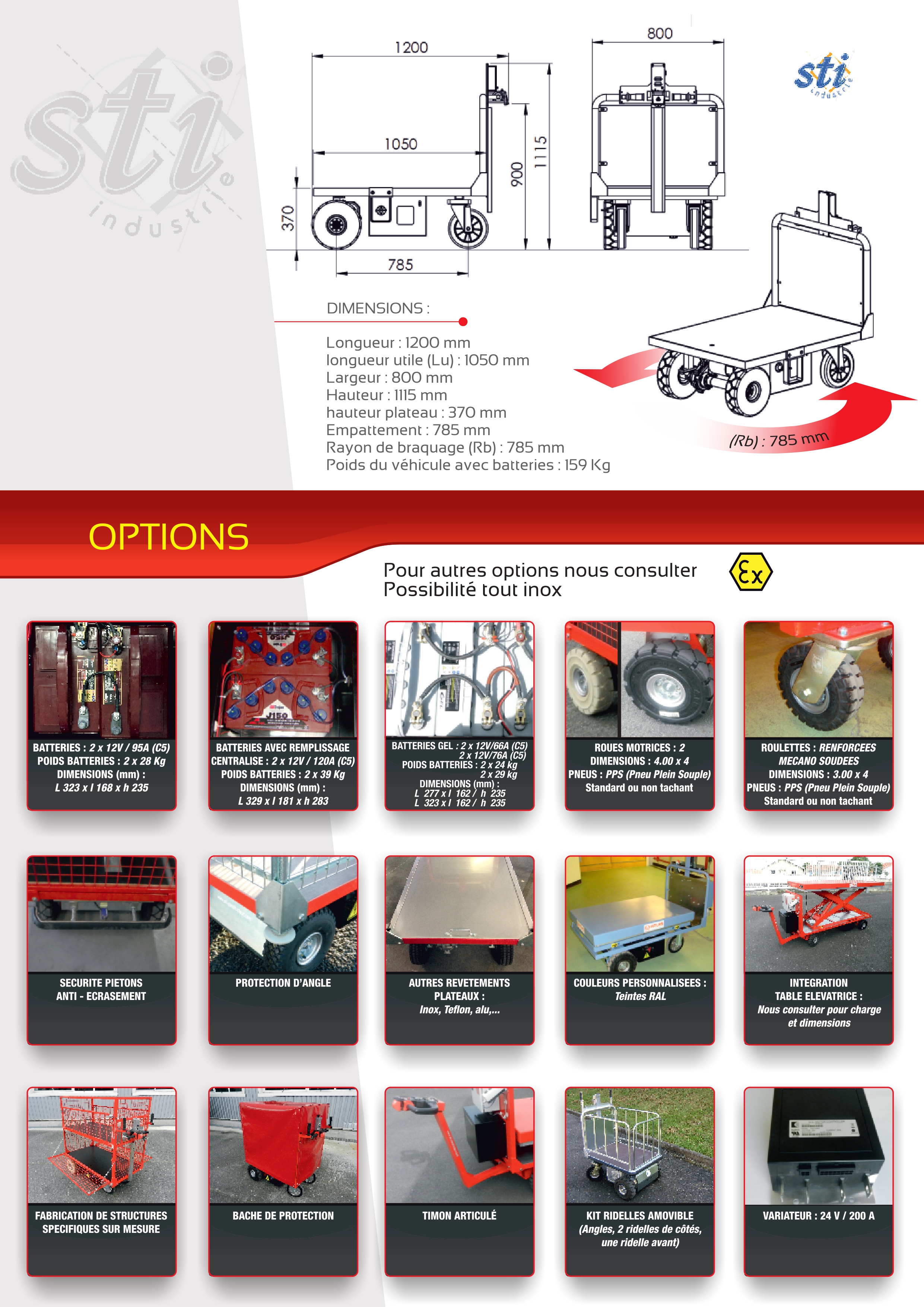

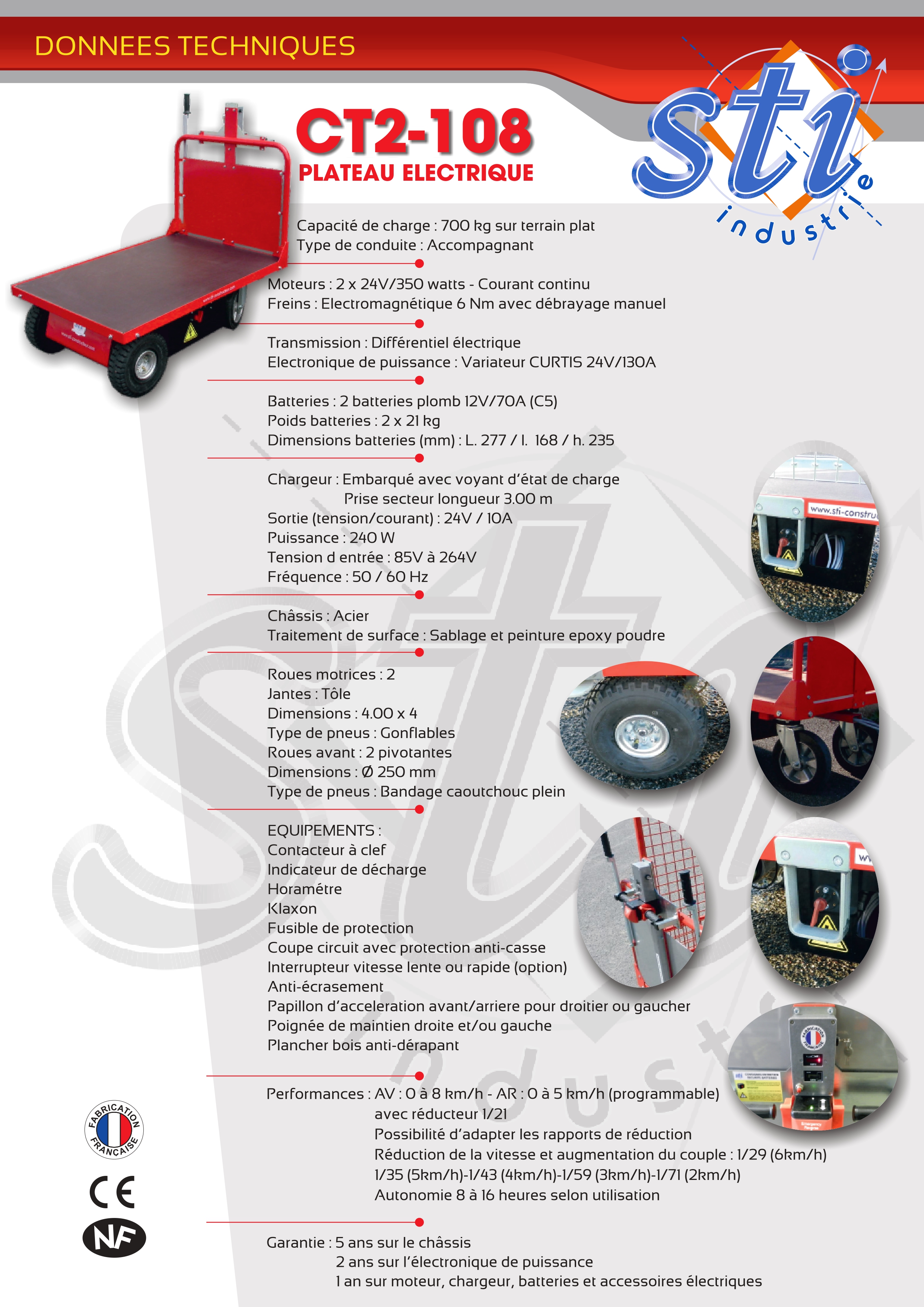

Data sheet
- Load capacity
- 700 kg on flat ground
- Length (mm)
- 1200
- Usable Length (mm)
- 1050
- Width (mm)
- 800
- Height (mm)
- 1115
- Tray height (mm)
- 370
- Wheelbase (mm)
- 785
- Turning radius (mm)
- 785
- Vehicle weight with batteries (Kg)
- 159
- Type of driving
- Accompanying
- Engine
- 2 x 24V / 350 watts - direct current
- Brake
- 6Nm electromagnetic with manual disengagement
- Transmission
- Electric differential
- Power Electronics
- CURTIS 24V / 130A dimmer
- Batteries
- 2 Lead Batteries 12V / 70A (C5)
- Battery weight
- 2 x 21 Kg
- Battery dimensions (mm)
- L.277 / W.168 / H.235
- Charger
- On-board with charge status indicator - 3 m long mains socket
- Output (Voltage / Current)
- 24V/10A
- Power
- 240 W
- Input voltage
- 85V to 264V
- Frequency
- 50 / 60 Hz
- Chassis
- Steel
- Surface treatment
- Sandblasting and powder coating
- Drive wheels
- 2
- Rims
- Sheet metal
- Dimension
- 4.00 x 4
- Type de pneus
- Inflatable
- Front wheels
- 2 swivel
- Front wheel dimensions
- Ø 250 mm
- Type de pneu roues avant
- Solid rubber tyres
- Equipment
- Anti-crush
Circuit breaker with anti-breakage protection
Discharge indicator
Front/rear throttle valve for right- or left-handed
Hello
Horn
Key Contactor
Non-slip wooden floor
Protective fuse
Right and/or left grab handle
Slow or fast speed switch (optional) - Performance
- 1/35 (5km/h) - 1/43 (4km/h) - 1/59 (3km/h) - 1/71 (2km/h)
Ability to adapt reduction ratios
Battery life 8 to 16 hours depending on use
Front: 0 to 8 km/h - Rear: 0 to 5 km/h (Programmable)
Speed reduction and torque increase: 1/29 (6km/h)
With 1/21 gearbox - Guarantees
- 1 year on motor, charger, batteries and electrical accessories
2 years on power electronics
5 years on the chassis
