CT2-127 Electric Bed

Le plateau motorisé est idéal pour le transport de produits alimentaires, de documents administratifs, de colis, de pièces mécaniques ou de tout autre type de charge.

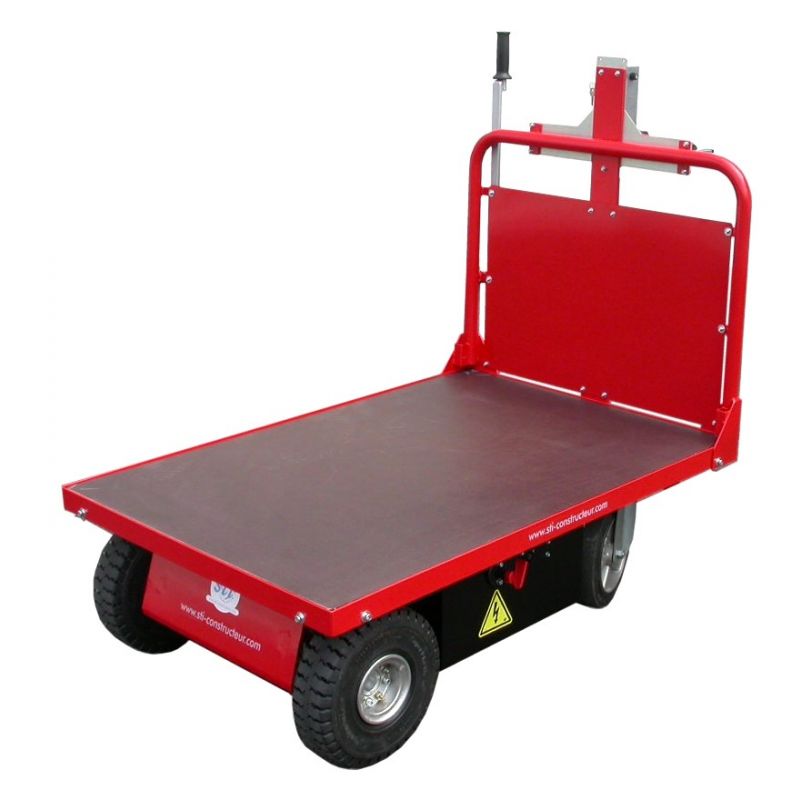

The CT2-127 is an electric platform with dual motorization ideal for transporting food products, administrative documents, parcels, mechanical parts or any other type of load up to 700 kg.

Its dual engine allows it to overcome significant ramps on degraded ground.

Its small footprint allows you to move around in tight spaces.

All our motorized trays can be equipped according to your needs, side panels, mesh structure, integration of a lift table or any other specific adaptation.

PHOTOS OF CUSTOMER ACHIEVEMENTS

VIDEOS

plateau-electrique-ct2-127

Data sheet

Load capacity
700 kg on flat ground
Length (mm)
1350
Usable Length (mm)
1200
Width (mm)
700
Height (mm)
1115
Tray height (mm)
370
Wheelbase (mm)
900
Turning radius (mm)
900
Vehicle weight with batteries (Kg)
170
Type of driving
Accompanying
Engine
24V / 800 watts - direct current
Brake
6Nm electromagnetic with manual disengagement
Transmission
Electric differential
Power Electronics
CURTIS 24V / 130A dimmer
Batteries
2 Lead Batteries 12V / 70A (C5)
Battery weight
2 x 21 Kg
Battery dimensions (mm)
L.277 / W.168 / H.235
Charger
On-board with charge status indicator - 3 m long mains socket
Output (Voltage / Current)
24V/10A
Power
240 W
Input voltage
85V to 264V
Frequency
50 / 60 Hz
Chassis
Steel
Surface treatment
Sandblasting and powder coating
Drive wheels
2
Rims
Sheet metal
Dimension
4.00 x 4
Type de pneus
Inflatable
Front wheels
2 swivel
Front wheel dimensions
Ø 250 mm
Type de pneu roues avant
Solid rubber tyres
Equipment
Anti-crush
Circuit breaker with anti-breakage protection
Discharge indicator
Front/rear throttle valve for right- or left-handed
Hello
Horn
Key Contactor
Non-slip wooden floor
Protective fuse
Right and/or left grab handle
Slow or fast speed switch
Performance
1/35 (5km/h) - 1/43 (4km/h) - 1/59 (3km/h) - 1/71 (2km/h)
Ability to adapt reduction ratios
Battery life 8 to 16 hours depending on use
Front: 0 to 8 km/h - Rear: 0 to 5 km/h (Programmable)
Speed reduction and torque increase: 1/29 (6km/h)
With 1/21 gearbox
Guarantees
1 year on motor, charger, batteries and electrical accessories
2 years on power electronics
5 years on the chassis
