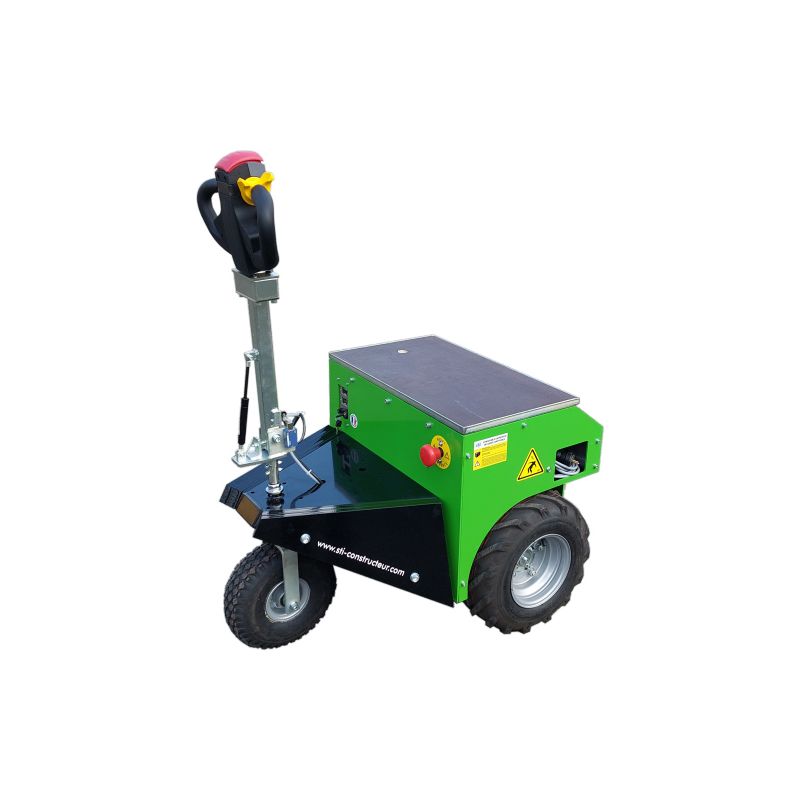

PTA-1 Agricultural 2T

The PTA-1 Agricole is an electric puller/pusher that can tow or push loads up to 2000 kg.

The PTA-1 Agricole is an electric puller/pusher that can tow or push loads up to 2000 kg.

Space-saving and silent, it allows you to move around inside or outside cramped premises in complete safety.

The drawbar can be lifted by a gas spring, making it easy to manoeuvre and make U-turns.

STI AGRICOLE
PTA-1-A

Data sheet

Pulling capacity
2000 kg on flat ground
Length (mm)
Straight 1250mm / Inclined 1690mm
Hook effort (Kg)
170
Width (mm)
795
Height (mm)
Straight 1325mm /Angled 975mm
Wheelbase (mm)
720
Turning radius (mm)
1300
Vehicle weight with batteries (Kg)
221
Type of driving
Accompanying
Engine
24V / 800 watts - direct current
Brake
6 Nm electromagnetic with manual disengagement
Batteries
2 Lead Batteries 12V / 70A (C5)
Battery weight
2 x 21 Kg
Battery dimensions (mm)
L.277 / W.168 / H.235
Charger
On-board with charge status indicator - AC socket length 3 m
Output (Voltage / Current)
24V/10A
Power
240 W
Input voltage
85V to 264V
Frequency
50 / 60 Hz
Chassis
Steel
Surface treatment
Sandblasting and powder coating
Drive wheels
2
Rims
Sheet metal
Dimension
16x6,50-8
Type de pneus
Agricultural Inflatable
Front wheels
Headmistress
Front wheel dimensions
Ø300 mm
Type de pneu roues avant
Agricultural Inflatable
Equipment
Anti-crush
Discharge indicator
Emergency Stop Punch
Front/rear throttle valve for right- or left-handed
Hello
Hitch: 3 heights with Ø20 spindle
Horn
Key Contactor
Storage bin
Tilting drawbar with gas spring return
Performance
Battery life 8 to 16 hours depending on use
Front: 0 to 8 km/h - Rear: 0 to 5 km/h (Programmable)
Guarantee
1 year on motor, charger, batteries and electrical accessories
2 years on power electronics
5 years on the chassis
