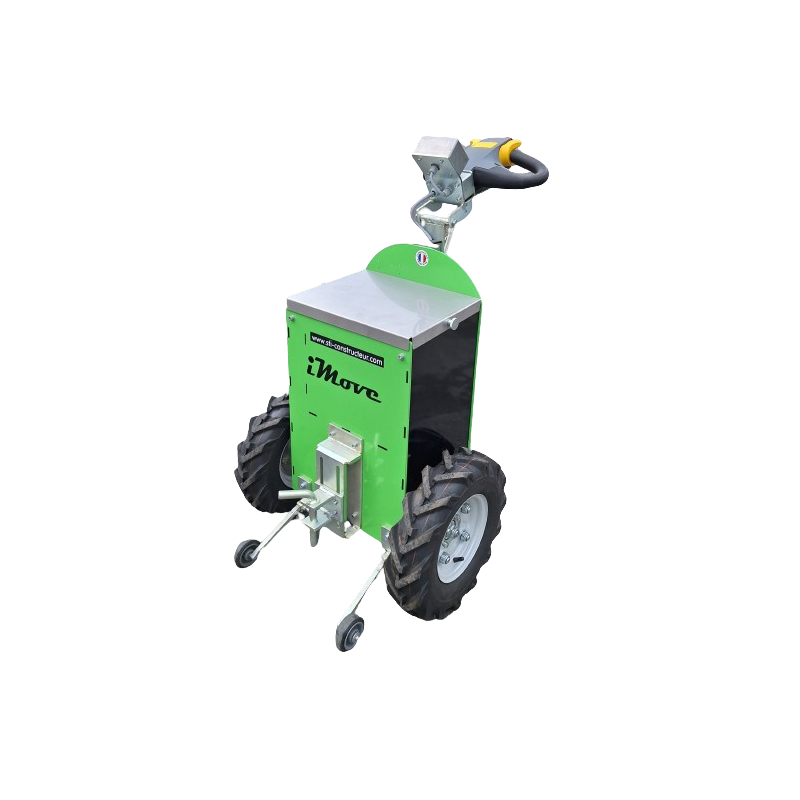

iMove Agricultural

The iMove Agricole is an electric pull/pusher that allows you to tow or push loads up to 1500 kg.

The iMove Agricole is an electric puller/pusher that allows you to tow or push loads up to 1500 kg on flat ground.

Space-saving and silent, it allows you to move around inside or outside cramped premises in complete safety.

Depending on your activity, the iMove Agricole can be fitted with the right accessory for your trolleys, rolls, containers, trailers, etc.

Thanks to its electronics, it can be programmed according to your wishes: acceleration, deceleration and speed.

STI AGRICOLE
iMove Agricole

Data sheet

Pulling capacity
1500 kg on flat ground
Length (mm)
860
Hook effort (Kg)
145
Width (mm)
675
Height (mm)
1080
Wheelbase (mm)
377
Turning radius (mm)
660
Vehicle weight with batteries (Kg)
140
Type of driving
Accompanying
Engine
24V / 800 watts - direct current
Brake
6 Nm electromagnetic with manual disengagement
Transmission
Differential in oil bath
Power Electronics
CURTIS 24V / 130A dimmer
Batteries
2 lead batteries 12V/70A (C5)
Battery weight
2 x 21 Kg
Battery dimensions (mm)
L.277 / W.168 / H.235
Charger
On-board with charge status indicator - AC socket length 3 m
Output (Voltage / Current)
24V/10A
Power
240 W
Input voltage
85V to 264V
Frequency
50 / 60 Hz
Chassis
Steel
Surface treatment
Sandblasting and powder coating
Drive wheels
2
Rims
Sheet metal
Dimension
4.00 x 8
Type de pneus
Agricultural Inflatable
Front wheel dimensions
Ø 100 x 40
Type de pneu roues avant
Solid rubber tyres
Training wheel
1 swivel
Equipment
Anti-crush
Connecting coupling with spindle diameter 20
Discharge indicator
Emergency Stop Punch
Front/rear throttle valve for right- or left-handed
Height and tilt adjustable drawbar
Hello
Horn
Key Contactor
Slow or fast speed switch
Performance
2 programmable slow and fast positions
Battery life 8 to 16 hours depending on use
Front: 0 to 8 k.m/h - Rear: 0 to 5 km/h
Guarantees
1 year on motor, charger, batteries and electrical accessories
2 years on power electronics
5 years on the chassis
