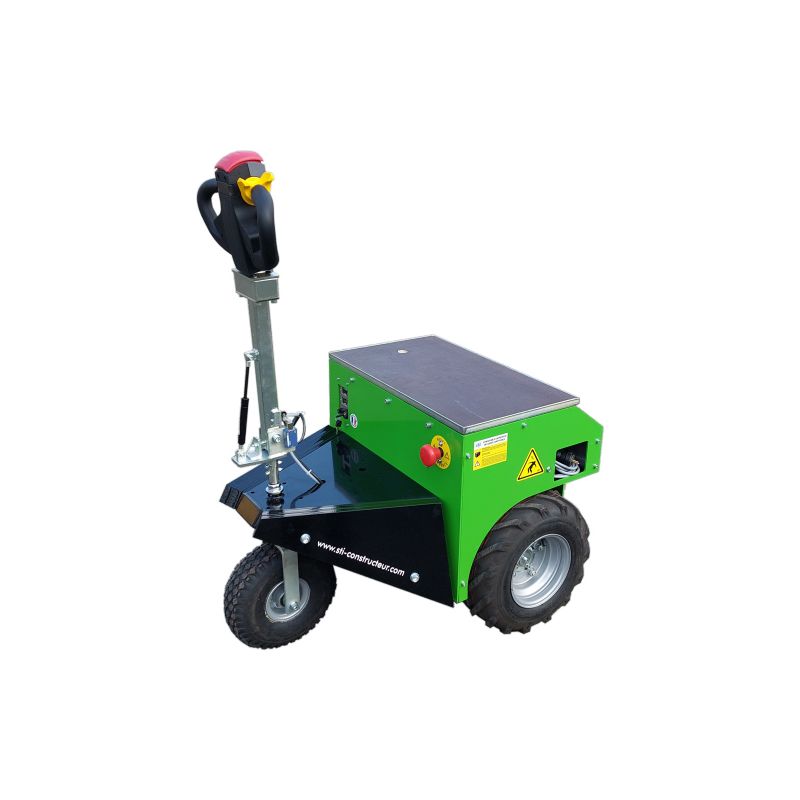

PTA-2 Agricultural 4T

The PTA-2 Agricole is a dual-motorized electric puller/pusher that can tow or push loads up to 4000 kg.

The PTA-2 Agricole is a dual-motorized electric puller/pusher that can tow or push loads up to 4000 kg depending on the reduction ratio.

Its dual engine allows it to cross important ramps on degraded ground in complete safety.

Space-saving and silent, it allows you to move around inside or outside cramped premises in complete safety.

The drawbar can be lifted by a gas spring, making it easy to manoeuvre and make U-turns.

STI AGRICOLE
PTA-2-A

Data sheet

Pulling capacity
2000 to 4000 on flat ground
Length (mm)
RD 1610mm / RL 1560mm
Hook effort (Kg)
260
Width (mm)
710
Height (mm)
RD 1300mm / RL1190mm
Wheelbase (mm)
CC 625mm / CS 725mm
Turning radius (mm)
CC 625mm /CS 725mm
Vehicle weight with batteries (Kg)
221
Type of driving
Accompanying
Engine
2 x 24V / 350 watts - direct current
Brake
6 Nm electromagnetic with manual disengagement
Transmission
Electric differential
Power Electronics
CURTIS 24V / 130A dimmer
Batteries
2 Lead Batteries 12V / 70A (C5)
Battery weight
2 x 21 Kg
Battery dimensions (mm)
L.277 / W.168 / H.235
Charger
On-board with charge status indicator - AC socket length 3 m
Output (Voltage / Current)
24V/10A
Power
240 W
Input voltage
85V to 264V
Frequency
50 / 60 Hz
Chassis
Steel
Surface treatment
Sandblasting and powder coating
Drive wheels
2
Rims
Sheet metal
Dimension
16x6,50-8
Type de pneus
Agricultural Inflatable
Front wheels
Headmistress
Front wheel dimensions
Ø300
Type de pneu roues avant
Agricultural Inflatable
Equipment
Anti-crush
Discharge indicator
Emergency Stop Punch
Front/rear throttle valve for right- or left-handed
Hello
Hitch: 3 heights with Ø20 spindle
Horn
Key Contactor
Storage bin
Tilting drawbar with gas spring return
Performance
Battery life 8 to 16 hours depending on use
Front: 0 to 8 km/h - Rear: 0 to 5 km/h (Programmable)
Guarantee
1 year on motor, charger, batteries and electrical accessories
2 years on power electronics
5 years on the chassis
