PM-800M - Market Gardening Plateau

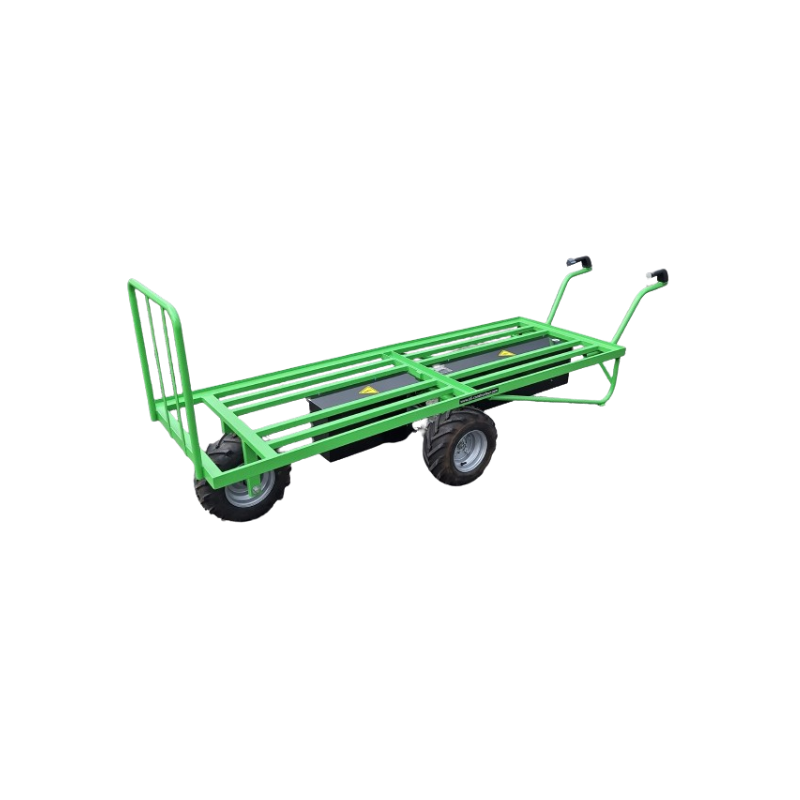

The PM-800M is an electric tray designed for the transport of vegetable crates or any other type of load up to 350 Kg.

The PM-800M is an electric tray designed for the transport of vegetable crates or any other type of load up to 350 Kg.

It can carry up to 32 600x400 crates, thanks to its pendulum motor, the wheels will always be in contact with the ground ensuring excellent traction in all circumstances.

The PM-800M can be adapted to your needs. (Non-standard modification contact us)

PHOTOS

STI AGRICOLE
PM-800M

Data sheet

Load capacity
350 kg on flat ground
Length (mm)
2900
Usable Length (mm)
2400
Width (mm)
810
Tray height (mm)
570/490
Wheelbase (mm)
1040
Vehicle weight with batteries (Kg)
203
Type of driving
Accompanying
Engine
24V / 800 watts - direct current
Brake
6 Nm electromagnetic with manual disengagement
Transmission
Mechanical differential
Power Electronics
CURTIS 24V / 130A dimmer
Batteries
2 Lead Batteries 12V / 95A (C5)
Battery weight
2 x 28 Kg
Battery dimensions (mm)
L. 323 / 1. 168 / h. 235
Charger
On-board with charge status indicator - AC socket length 3 m
Output (Voltage / Current)
24V/10A
Input voltage
85V to 264V
Frequency
50 / 60 Hz
Chassis
Steel
Surface treatment
Sandblasting and powder coating
Drive wheels
2
Rims
Sheet metal
Dimension
16x6,50-8
Type de pneus
Agricultural Inflatable
Front wheels
Fixed
Front wheel dimensions
16x6,50-8
Type de pneu roues avant
Agricultural Inflatable
Equipment
Circuit breaker
Discharge indicator
Front/Rear Throttle Handle
Fuse Holder
Grab handle
Hello
Switch-on
Performance
Battery life 8 to 16 hours depending on use
Front: 0 to 8 km/h - Rear: 0 to 5 km/h (Programmable)
Turning Radius (Rb)
1860
Guarantee
1 year on motor, charger, batteries and electrical accessories
2 years on power electronics
5 years on the chassis
Height Handles
950
Front side height
600
