The motorized tray is ideal for transporting food products, administrative documents, parcels, mechanical parts or any other type of load.

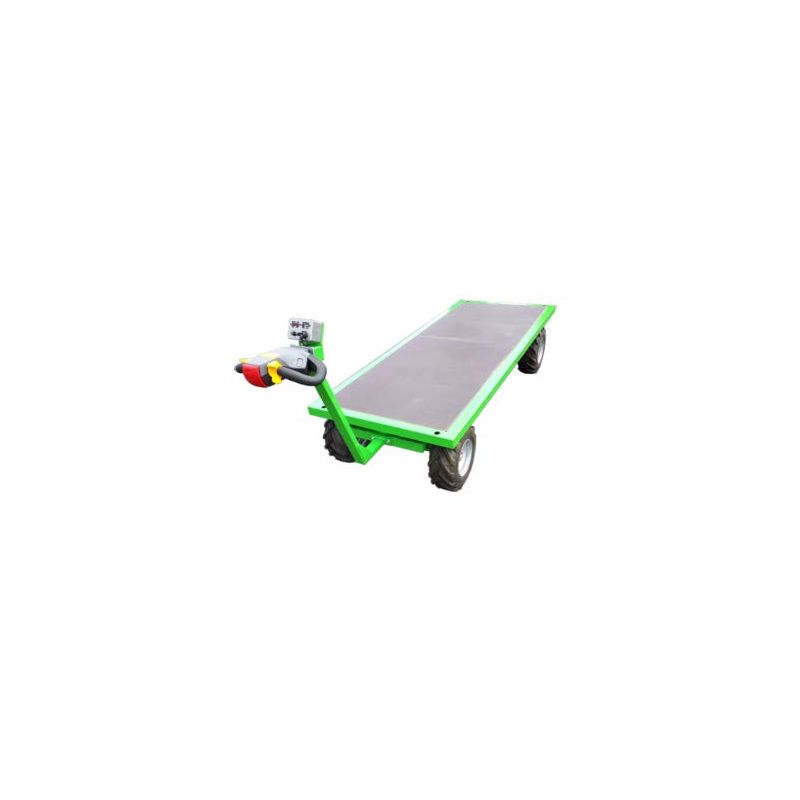

Agricultural Deck CT2A-249
The motorized tray is ideal for transporting food products, administrative documents, parcels, mechanical parts or any other type of load.
The motorized tray is ideal for transporting food products, administrative documents, parcels, mechanical parts or any other type of load. Its small footprint allows you to move around in tight spaces. All our motorized trays can be equipped according to your needs, side panels, mesh structure, integration of a lift table or any other specific adaptation.
Maximum capacities supported:
700 Kg on flat ground
Equipment
Ignition key
Charge indicator and hour meter
Kill switch with anti-breakage protection
Command and power protection fuse
Horn
Drawbar with forward and reverse throttle with anti-crushing safety
Right and left grab handle
Built-in charger with 3-meter power cable and charge status light
Non-slip wooden floor
Guarantees
5 years on the chassis
2 years on the power inverter
1 year on motor, battery and charger
Options
Battery weight: 2x28kg
Dimensions (mm):
L 323 x W 168 x H 235
Battery weight: 2 x 39 kg
Dimensions (mm):
L 329 x W 181 x H 283
2 x 12V/76A (C5)
Battery weight: 2 x 24 kg
2 x 29 kg
Dimension (mm):
L 277 x W 162 x H 235
L 323 x W 162 x H 235
RAL shades
Lift table:
Contact us for charge
and dimensions
(1 front sideboard, 1 rear sideboard)
Plateau-Agricole-CT2A-249
Data sheet
- Load capacity
- 700 kg on flat ground
- Length (mm)
- 3050
- Usable Length (mm)
- 2400
- Width (mm)
- 950
- Height (mm)
- 1000
- Tray height (mm)
- 480
- Wheelbase (mm)
- 1750
- Turning radius (mm)
- 1750
- Type of driving
- Accompanying
- Engine
- 2 x 24V / 350 watts - direct current
- Brake
- 6 Nm electromagnetic with manual disengagement
- Transmission
- Electric differential
- Power Electronics
- CURTIS 24V / 130A dimmer
- Batteries
- 2 Lead Batteries 12V / 70A (C5)
- Battery weight
- 2 x 21 Kg
- Battery dimensions (mm)
- L.277 / W.168 / H.235
- Charger
- On-board with charge status indicator - 3 m long mains socket
- Output (Voltage / Current)
- 24V/10A
- Power
- 240 W
- Input voltage
- 85V to 264V
- Frequency
- 50 / 60 Hz
- Chassis
- Steel
- Surface treatment
- Sandblasting and powder coating
- Drive wheels
- 2
- Rims
- Sheet metal
- Type de pneus
- Agricultural Inflatable
- Front wheels
- 2 ball ring mounts
- Front wheel dimensions
- 16x6,50-8
- Type de pneu roues avant
- Agricultural Inflatable
- Equipment
- Anti-crush
Circuit breaker with anti-breakage protection
Discharge indicator
Front/rear throttle valve for right- or left-handed
Hello
Horn
Key Contactor
Non-slip wooden floor
Protective fuse
Slow or fast speed switch - Performance
- 1/35 (7km/h) - 1/43 (6km/h) - 1/59 (4km/h)
Ability to adapt reduction ratios
Battery life 8 to 16 hours depending on use
Front: 0 to 8 km/h - Rear: 0 to 5 km/h (Programmable)
Speed reduction and torque increase: 1/29 (6km/h)
With 1/21 gearbox - Guarantees
- 1 year on motor, charger, batteries and electrical accessories
2 years on power electronics
5 years on the chassis - Weight of the vehicle with batteries
- 245
