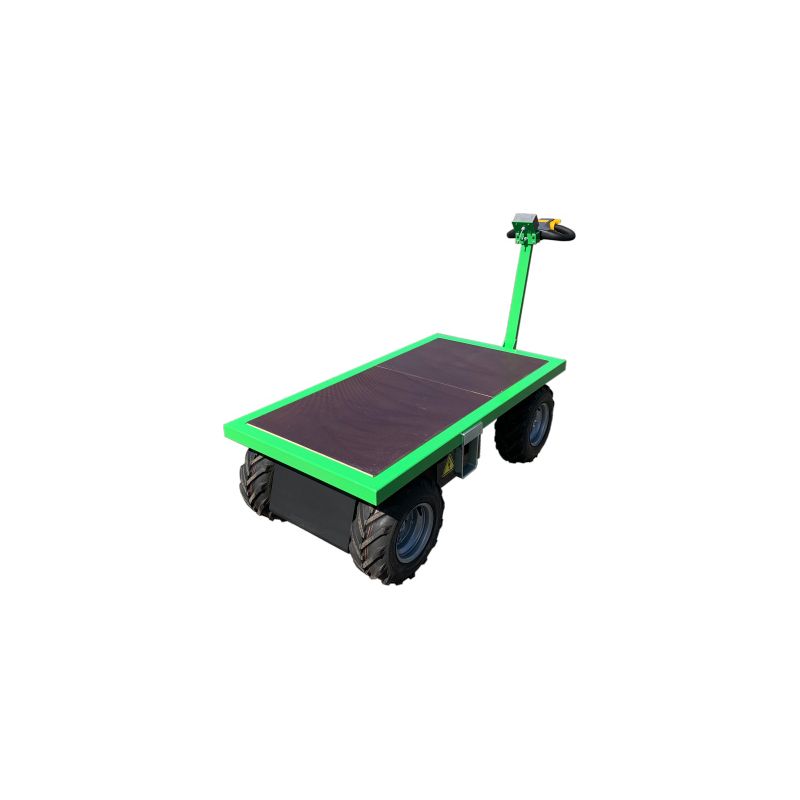

Agricultural Deck CT2A-158

Le plateau motorisé est idéal pour le transport de produits alimentaires, de documents administratifs, de colis, de pièces mécaniques ou de tout autre type de charge.

The CT2A-158 is an electric double motorized platform ideal for transporting food products, straw bales, vegetable crates or any other type of load up to 700 Kg.

Its dual engine allows it to cross major ramps on degraded ground in complete safety.

Its small footprint allows you to move around in tight spaces.

All our motorized trays can be equipped according to your needs, side panels, mesh structure, integration of a lift table or any other specific adaptation.

PHOTOS OF CUSTOMER ACHIEVEMENTS

STI AGRICOLE
Plateau-Agricole-CT2A-158-700kg

Data sheet

Load capacity
700 kg on flat ground
Length (mm)
2150
Usable Length (mm)
1500
Width (mm)
800
Height (mm)
1100
Tray height (mm)
480
Wheelbase (mm)
1030
Type of driving
Accompanying
Engine
2 x 24V / 350 watts - direct current
Brake
6 Nm electromagnetic with manual disengagement
Transmission
Electric differential
Batteries
2 Lead Batteries 12V / 70A (C5)
Battery weight
2 x 21 Kg
Battery dimensions (mm)
L.277 / W.168 / H.235
Charger
On-board with charge status indicator - 3 m long mains socket
Output (Voltage / Current)
24V/10A
Power
240 W
Input voltage
85V to 264V
Frequency
50 / 60 Hz
Chassis
Steel
Surface treatment
Sandblasting and powder coating
Drive wheels
2
Rims
Sheet metal
Type de pneus
Agricultural Inflatable
Front wheels
2 ball ring mounts
Front wheel dimensions
16x6,50-8
Type de pneu roues avant
Agricultural Inflatable
Equipment
Anti-crush
Circuit breaker with anti-breakage protection
Discharge indicator
Front/rear throttle valve for right- or left-handed
Hello
Horn
Key Contactor
Non-slip wooden floor
Protective fuse
Slow or fast speed switch (optional)
Performance
1/35 (7km/h) - 1/43 (6km/h) - 1/59 (4km/h)
Ability to adapt reduction ratios
Battery life 8 to 16 hours depending on use
Front: 0 to 8 km/h - Rear: 0 to 5 km/h (Programmable)
Speed reduction and torque increase: 1/29 (6km/h)
With 1/21 gearbox
Guarantees
1 year on motor, charger, batteries and electrical accessories
2 years on power electronics
5 years on the chassis
Turning Radius (Rb)
1030
Weight of the vehicle with batteries
235
