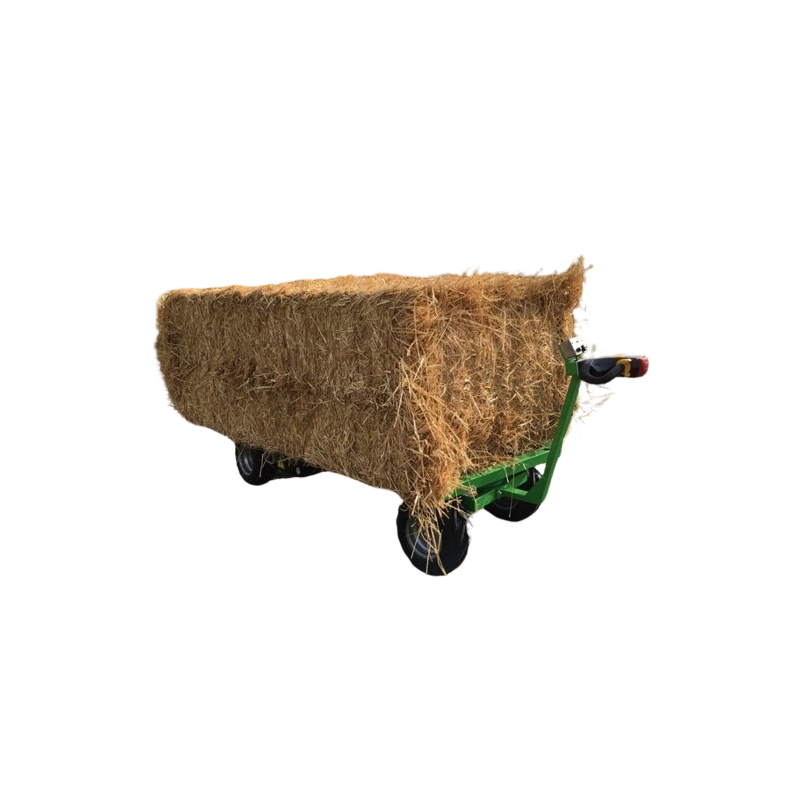

CT2A-249 Tray - Straw Bales
Le plateau motorisé est idéal pour le transport de produits alimentaires, de documents administratifs, de colis, de pièces mécaniques ou de tout autre type de charge.
The CT2-249 is an electric platform with dual motorization ideal for transporting rectangular or round bales of straw, food products, any other type of load, on unstabilized ground.
Its dual engine allows it to cross important ramps on degraded ground in complete safety.
All our motorized trays can be equipped according to your needs: side panels, mesh structure, integration of a lift table or any other specific adaptation.
Depending on your needs we can modify the tray in length and width (non-standard).
Plateau-Agricole-CT2A-249-bottes-de-pailles
Data sheet
- Load capacity
- 700 kg on flat ground
- Length (mm)
- 3050
- Usable Length (mm)
- 2400
- Width (mm)
- 950
- Height (mm)
- 1000
- Tray height (mm)
- 480
- Wheelbase (mm)
- 1750
- Turning radius (mm)
- 1750
- Type of driving
- Accompanying
- Engine
- 2 x 24V / 350 watts - direct current
- Brake
- 6 Nm electromagnetic with manual disengagement
- Transmission
- Electric differential
- Power Electronics
- CURTIS 24V / 130A dimmer
- Batteries
- 2 Lead Batteries 12V / 70A (C5)
- Battery weight
- 2 x 21 Kg
- Battery dimensions (mm)
- L.277 / W.168 / H.235
- Charger
- On-board with charge status indicator - 3 m long mains socket
- Output (Voltage / Current)
- 24V/10A
- Power
- 240 W
- Input voltage
- 85V to 264V
- Frequency
- 50 / 60 Hz
- Chassis
- Steel
- Surface treatment
- Sandblasting and powder coating
- Drive wheels
- 2
- Rims
- Sheet metal
- Type de pneus
- Agricultural Inflatable
- Front wheels
- 2 ball ring mounts
- Front wheel dimensions
- 16x6,50-8
- Type de pneu roues avant
- Agricultural Inflatable
- Equipment
- Anti-crush
Circuit breaker with anti-breakage protection
Discharge indicator
Front/rear throttle valve for right- or left-handed
Hello
Horn
Key Contactor
Non-slip wooden floor
Protective fuse
Slow or fast speed switch - Performance
- 1/35 (7km/h) - 1/43 (6km/h) - 1/59 (4km/h)
Ability to adapt reduction ratios
Battery life 8 to 16 hours depending on use
Front: 0 to 8 km/h - Rear: 0 to 5 km/h (Programmable)
Speed reduction and torque increase: 1/29 (6km/h)
With 1/21 gearbox - Guarantees
- 1 year on motor, charger, batteries and electrical accessories
2 years on power electronics
5 years on the chassis - Weight of the vehicle with batteries
- 245
